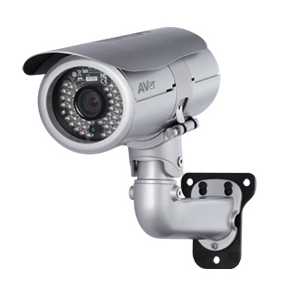

Хяналтын IP Камер 50метр

Энэ IP камер нь видео бичлэгийг full HD форматаар бичдэг бөгөөд өдөр ч, шөнө ч ажиллах чадвартай IR-cut болон IR LED  гэрэлтүүлэгчтэй IR-ын харах зайн нь 50 метр доторх зайг хялбархан харахад тохиромжтой камер юм. Мөн энэ камер ус чийг болон шороо тоосны хамгаалалттайгаас гадна, камерийн хэт халалтаас хамгаалсан хөргөх системтэй.

SKU: g0021 Category: Tag:

Description

  • 2-megapixel and 1/2.7 inch CMOS sensor with vari-focal lens (f=3~9mm)
  • supports up to 30fps @ 1920 x 1080 in H.264 / MPEG-4 format
  • supports plug and play feature with AVer DVRs/NVRs
  • built-in mechanical IRC (IR-cut filter removable) and IR LED (50m) for excellent day and night visibility
  • supports dynamic 3D / 2D noise reduction to deliver cleaner, sharper images in low-light environments
  • EN50130-4 certified, ensuring high surge and electro-thermal resistance
  • local storage backup when an event is triggered or the network is down
  • event trigger actions: mail, FTP, save to on-board microSDHC card, relay, Samba
  • cable management wall mount for easy installation
  • NXU Lite video management software (free up to 32CH)

Нэмэлт мэдээлэл

model SF2121H-BHR-50
application environment
indoor/outdoor indoor / outdoor (IP67)
day/night control auto / manual / schedule
system
ONVIF compatibility v2.1
flash (MB) 128
RAM (MB) 256
embedded OS Linux
camera image
sensor 1/2.7″ CMOS
min. illumination color: 0.2 lux @ F1.2
0 lux @ F1.2 (IR LED on)
built-in LED 48-piece IR LED
IR distance 50m
mechanical ICR yes
auto IRIS yes
lens
lens type vari-focal lens
F/no F1.2
focal length f=3~9mm
angle of view 121.2°(W)~38.1°(T) (horizontal)
62.1°(W)~21.3°(T) (vertical)
video
compression H.264 / MPEG-4 / MJPEG simultaneously
max. resolution (H.264/MJPEG) full HD (1920 x 1080)
max. frame rate H.264 / MPEG-4 up to 30fps (1920 x 1080)
MJPEG up to 24fps (1600 x 1200)
MJPEG up to 30fps (1280 x 1024)
streaming H.264 / MPEG-4 (3GPP only) / JPEG
multiple streams yes
IMD (Intelligent Motion Detection) zone 3
WDR (Wide Dynamic Range) yes
BLC (Backlight Compensation) yes
noise reduction 3D, 2D
ePTZ yes
privacy mask area 3
image orientation mirror, flip
audio
audio encoder G.711 / G.726 audio compression
audio streaming 2-way audio
microphone external microphone input
network
protocol HTTP, HTTPS, TCP/IP, QoS/DSCP, UPnP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP (video only), Samba
Ethernet Ethernet (10/100 Base-T), RJ45 connector
security password protection, IP address filtering, HTTPS encrypted data transmission
user up to 10 users simultaneously
alarm
trigger event mail, FTP, save to microSDHC card, relay, Samba
interface
digital input/output 1/1
built-in storage option microSDHC card (32G max.)
general
power supply DC 12V / PoE
PoE PoE Class 4 (IEEE802.3at)
power consumption:
7.3W (IR LED off / heater off)
9.4W (IR LED on / heater off)
20.7W (IR LED off / heater on)
22.8W (IR LED on / heater on)
dimensions 111 W x 114.5 H x 265.2 D (mm)
net weight 2180g (w/ bracket)
temperature and humidity -40°C~50°C, 20%~90%
software
VMS NXU Lite (free bundle up to 32CH)
support language
English, Arabic, Bulgarian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hebrew, Hungarian, Italian, Japanese, Norwegian, Polish, Potuguese, Romanian, Russian, Simplified Chinese, Slovak, Spanish, Swedish, Thai, Traditional Chinese, Turkish
