Description

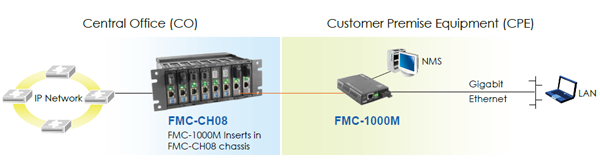

Multi-mode болон single-mode-оор ажиллах боломжтой. Мөн auto-negatiation функц идвэхтэй үед half duplex болон full duplex дохиог автоматаар IEEE802.3u стандартын дагуу хөрвүүлэлт хийдэг. UTP портын хурд, Link, Duplex, FX портын төлвийг харуулсан LED гэрэлтэй. FMC-CH08 болон FMC-CH17 шасситай хамт хэрэглэх боломжтой.
Оптик коннектор: SC, ST, FC, LC (SFP)
Дамжуулах зай: 2 шөрмөсөөр MM: 2km, SM: 15km, 30km, 50km, 80km, 120km
1 шөрмөсөөр SM: 20km, 40km, 60km, 80km
- 10/100/1000BASE-T to 1000BASE-X Converter
- Auto-Cross over for MDI/MDIX in TP port
- Auto-Negotiation or Manual mode in TP port
- Support flow control Enable or Disable
- Support Jumbo Frame 9K Packet
- Ingress/Egress Bandwidth control
- Support 802.3ah-OAM/IP in-band management
- Firmware upgrade via Web
- Digital Diagnostic (DOM) SFP Support
- Management Password Setting
- Dying gasp (remote power failure detection)
- Support Link Fault Pass Through ( LFP ) Function
- Support Auto Laser Shutdown (ALS) Function
- Web management on stand-alone.
- Support D/D function for SFP fiber transceiver
- Support On-Line F/W upgrade (local) by the Web manager
- Support 16 Tag VLAN
