Description
Энэ медиа конвертер нь Layer2 болон Layer 3-ийн хооронд IEEE802.1q, VLAN tag, Q in Q, STP, IPX, IP хөрвүүлэлт хийх чадвартай төхөөрөмж юм.
Оптик коннекторын сонголт: SC, ST, FC
Шилэн кабелаар дамжуулах зай: 2 шөрмөсөөр 2km, 15km, 30km, 50km, 80km, 120km
1 шөрмөсөөр 20km, 40km, 60km, 80km

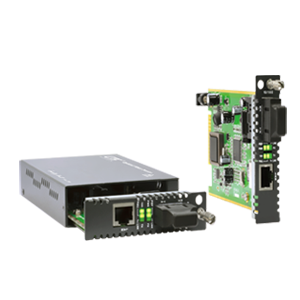

- 10/100Base-TX to 100Base-FX Converter
- Auto-Negotiation or forced mode
- Supports remote CPE power fail detect (dying gasp)
- Supports Far End Fault
- Supports Link Fault Pass through (LFP)
- Supports Loop Back Test
- Supports RMON counter
- D/D function for supported SFP fiber transceiver
- Auto Laser Shutdown (ALS)
- Auto MDI/MDIX
- Forward 2046 bytes (max.) packets in switch mode
- Forward 9K jumbo packets in converter mode
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1q Tag VLAN pass thru

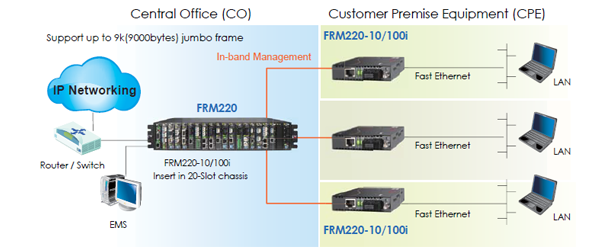

- Supports local / remote In-band management (Monitor and Configure) by the SNMP manager.
- Bandwidth control (Nx32K or Nx512Kbps)
- Support flow control (Pause)
- Fiber Hardware Reset (FHR)
- Online local / remote f/w upgrade
- Must be placed in managed chassis to realize any management features
