Description

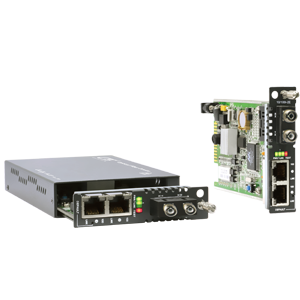

- 2-port 10/100Base-TX to 100Base-FX Converter
- Auto-Negotiation or forced mode
- Supports remote CPE power fail detect (dying gasp)
- Supports Far End Fault
- Supports Link Fault Pass through (LFP)
- Supports Fiber Loop Back Test
- Auto Laser Shutdown (ALS)
- Auto MDI/MDIX
- Forward 2046 bytes (max.) packets in switch mode
- Forward 9K jumbo packets in converter mode
- Supports Q in Q double tagged frame transparent
- Supports IEEE 802.1q Tag VLAN pass thru

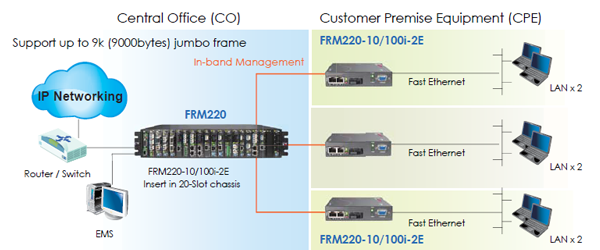

- Supports local / remote In-band management (Monitor and Configure) by local management with CH01M standalone chassis.
- Bandwidth control (Nx32K or Nx512Kbps)
- Support flow control (Pause)
- Fiber Hardware Reset (FHR)
- Must be placed in managed chassis to realize any management features
