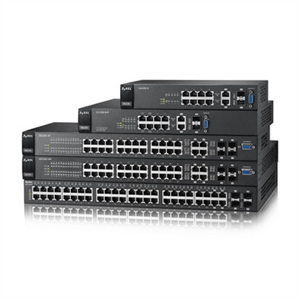

8/24/48 GbE L2 свич

Description

Standard Compliance

• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Ethernet
• IEEE 802.ab 1000BASE-T Ethernet
• IEEE 802.3z 1000BASE-X Ethernet
• IEEE 802.3x flow control
• IEEE 802.1D spanning tree protocol
• IEEE 802.1w rapid spanning tree protocol
• IEEE 802.1s multiple spanning tree protocol
• IEEE 802.1p class of service, priority protocols
• IEEE 802.1X port authentication
• IEEE 802.3ad LACP aggregation
• IEEE 802.af PoE (GS2200-8HP/24P)
• IEEE 802.3at PoE Plus (GS2200-8HP)
• IEEE 802.az EEE (Energy Efficient Ethernet) support (GS2200-8/8HP)

Traffic Management and QoS

• Rate limiting: Rule-based/port-based bandwidth control, 64 kbps granularity
• Dual-Rate-Three-Color (GS2200-48)
• Port-based egress traffic shaping
• Broadcast storm control
• IEEE 802.1p with 8 priority queues per port for different traffic types
• Weighted Round Robin (WRR)/SPQ/WFQ scheduling algorithm
• Supports DSCP
• Supports DSCP to 802.1p priority mapping
• Supports IGMP/IGMP snooping v1, v2, v3
• Congestion control on all ports

Link Aggregation

• IEEE 802.3ad LACP link aggregation compliant
• Support static manually port trunking
• Up to 8 aggregation groups, 8 ports/per group randomly selected (GS2200-48 remains 6/8)

Resilient Network

• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
• IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
• Backup Power System (BPS) power supply redundancy (GS2200-48)
• PoE Power Supply (PPS) support to be a full power budget PoE device (GS2200-24P)

User Security and Authentication

• MAC filtering per port secures access to each port
• IEEE 802.1Q tag-based and port-based VLAN
• Guest VLAN(port based/MAC based)
  9 MAC per port (Exclusive with protocol-based & IP subnet-based VLAN, for 8/24 port devices)
• Support GVRP, automatic VLAN member registration
• 256 static VLAN, up to 4K dynamic VLAN (GS2200-48)
• 1K static VLAN, up to 4K dynamic VLAN (GS2200-8/8HP/24/24P)
• Full range 4K PVID support
• Port-base VLAN & VLAN isolation
• Intrusion lock
• MAC freeze
• Specific MAC forwarding per port: only specified MAC addresses can access the network (Port security)
• Limited MAC number per port
• IP source guard
• Loop guard
• RADIUS MAC login
• IP filtering
• TCP/UDP socket filtering
• BPDU transparency
• 802.1X port-based authentication, compensated assignment over VLAN and bandwidth for valid access
• TACACS+
• Password encryption (GS2200-8/8HP/24/24P)

Network Administration Security

• User name/password required for Web/Telnet/local console administrators
• Two-level security by specific SNMP read/write community
• Multiple login session
• Multiple access permission management
• SSH v1/v2
• SSL

IPv6 Support

• IPv6 over Ethernet
• IPv6 Addressing
• IPv6 Path MTU
• ICMPv6
• DualStack
• Neighbor discovery
• DHCPv6 client
• DHCPv6 relay

Network Management

• Supports ZyXEL iStacking™, up to 24 switches can be managed by one IP address
• Web-based management
• Telnet CLI
• SNMP v1, v2c, v3
• RS-232c local console
• IP management: Static IP or DHCP client
• RMON four RMON groups 1, 2, 3, 9 (history, statistics, alarms and events) for enhanced traffic management, monitoring and analysis
• Port mirroring: supports source/destination/both port mirroring

Intelligent ACL (L2/L3/L4 Access List Control)

• Based on MAC address
• Based on VLAN
• Based on IP address
• Based on protocol type
• Based on TCP/UDP type
• Based on DSCP

MIB Information

• RFC 1066 TCP/IP-based MIB
• RFC 1213, 1157 SNMP v2c/v3 MIB
• RFC 2011, 2012, 2013 SNMP v2 MIB
• RFC 1493 bridge MIB
• RFC 2674 bridge MIB extension
• RFC 1643 Ethernet MIB
• RFC 2358 Ethernet-like MIB
• RFC 1757 RMON group 1, 2, 3, 9
• RFC 2819, 2925 Remote Management MIB
• RFC 3621—Power Ethernet MIB (GS2200-8HP/24P)
• ZyXEL private MIB

Certification

• UL (GS2200-8/8HP)
• CSA (GS2200-48)
• CE-LVD
• FCC, CE
• BSMI
• EU RoHS compliant
