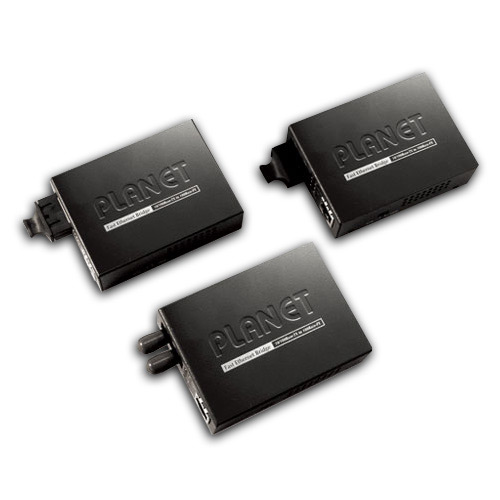

Description
Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
• Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
• One fiber-optic, 1310nm wavelength, connector type and distance vary with model
– FT-806A20 : Tx-1310nm, Rx-1550nm
– FT-806B20 : Tx-1550nm, Rx-1310nm
• Data Transfer Rate:
– TP: 10/100Mbps
– FX: 100Mbps
• Duplex mode support:
– Full or half-duplex mode by auto-negotiation (TP)
– Full or half-duplex mode by DIP switch (FX)
• LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
• DIP switch: 2 DIP switches
– Rear DIP switch: FX duplex mode selection
– Side DIP switch: LFP (Link Fault Pass-through) mode selection
• IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets
