Description
Physical Port

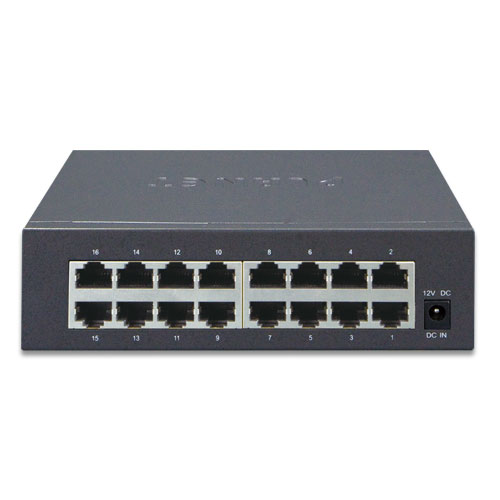

16 10/100/1000BASE-T Gigabit Ethernet ports
Supports auto MDI/MDI-X function
Layer 2 Features
Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards
Features Store-and-Forward mode with wire-speed filtering and forwarding rates
Integrated address look-up engine, supporting 8K absolute MAC addresses
9K jumbo packet support
IEEE 802.1Q VLAN packet transparent support
IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation
Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and auto-negotiation
Automatic address learning and address aging
Supports CSMA/CD protocol
Hardware Features
Made of metal, desktop size and wall-mount design

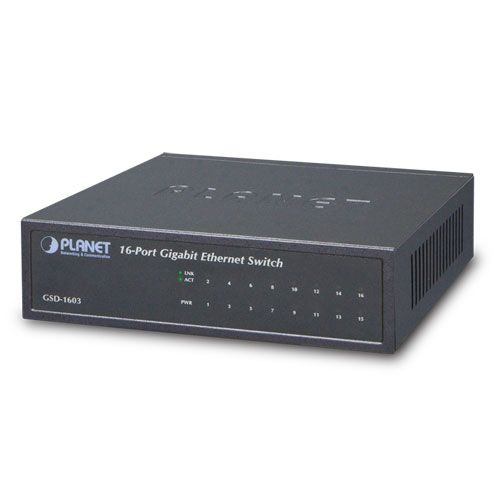

LED indicators for system power, per port Link/Act
12V DC, 1A external power adapter
FCC, CE Class B compliant
