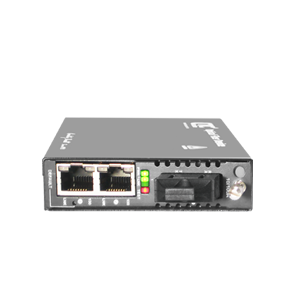

FRM220-CH01 нь ганц оролтын шасси бөгөөд төрөл бүрийн FRM220 серийн оптик медиа конвертерийн карт хийж ашиглах боломжтой. Тэжээл нь AC адаптер, мөн тогтмол -48VDC болон AC+DC давхар тэжээлтэй зэрэг сонголтуудтай.
Stand-alone case for all FRM220 cards
Available in four case types: external power adapter or power
built-in AC, DC or AC+DC
Fanless
FRM220-CH01 – Stand-alone one-slot chassis w/ external AC adapter
FRM220-CH01/AC – Stand-alone one-slot chassis w/ internal AC 100 ~240V power supply
FRM220-CH01/DC – Stand-alone one-slot chassis w/ internal DC 18 ~72V power supply
FRM220-CH01/AD – Stand-alone one-slot chassis w/ internal AC 100~240V & DC 36 ~72V power inputs
| Ports | One slot chassis |
|---|---|
| Power | CH01 Adapter Input: 100 ~ 240VAC. CH01 Adapter Output: DC12V 1A CH01-AC: 100 ~240VAC CH01-DC24: 18 ~ 36VDC, CH01-DC48: 36 ~ 72VDC CH01-AD: Input 100 ~ 240VAC, 18 ~ 72VDC |
| Power Consumption | 12W |
| Dimensions (D x W x H)mm | CH01: 160x88x24mm CH01-AC/DC/AD: 201x135x35mm |
| Weight | CH01: 280g CH01-AC/DC/AD: 580g |
| Temperature | 0~50°C (Operating) ,0~70°C (Storage) |
| Humidity | 10~90% non-condensing |
| Certification | CE, FCC, RoHS |
| MTBF | 65,000 h (25°C) |
