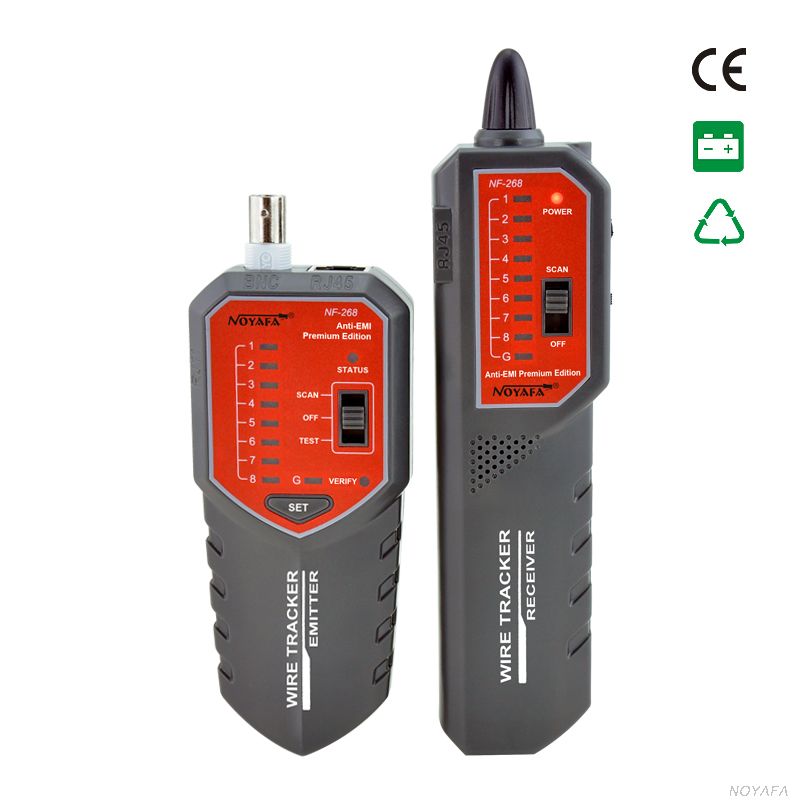

Description
-Easy to track with complete AC Interference Rejection
-Check wiremap of Lan cable with receiver directly.
-Tone tracing breakge points of Lan cables and metal lines.
-RJ45/RJ11/BNC and other ports are included and the complex switch is not required.
| Transmitter specifications | |
| Tone frequency | 130kHz |
| Max. distance of transmission | 3000m |
| Max. working current | Less than 10mA |
| Tone mode | 2 Tones, adjustable |
| Compatible connectors | RJ11, RJ45,BNC |
| Max. signal voltage | 8Vp-p |
| Function and faults light display | Light display(Wiremap, tone,tracing) |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V x 1pcs） |
| Dimension(LxWxD) | 13x4x2cm |
| Receiver specifications | |
| Frequency | 130kHz |
| The Max. working current | Less than 30mA |
| Earjack | 1 |
| Battery Type | DC9.0V（NEDA 1604/6F22 DC9V) x1pc |
| Dimension(LxWxD) | 10 x 5 x 2.3cm |
